High Accuracy Compression Type Scale Load Cell For Hopper Scale

China High Accuracy Compression Type Scale Load Cell For Hopper Scale supplier

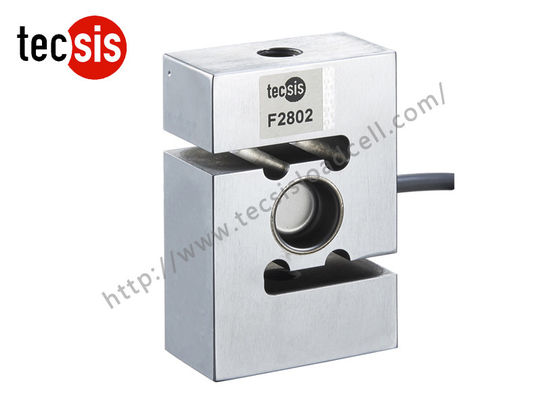

Large Image :  High Accuracy Compression Type Scale Load Cell For Hopper Scale

Product Details:

Place of Origin: China
Brand Name: tecsis
Model Number: F2802

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: negotiation
Packaging Details: Standard: carton
Delivery Time: Stock product:3~5 working days , No stock:10~35 days
Payment Terms: L/C, T/T
Supply Ability: 20,000pcs per month
Contact Now
Detailed Product Description
Product Name: F2802 S-Type Load Cell Application: Measurement In Hopper Scale
Material: Alloy Steel Customized: Acceptable
Capacity: 50kg~5t OEM/ODM: Acceptable
Structure: Compact Theory: Resistance Sensor
High Light:

micro load cell

,

load cells for scales



High Accuracy Compression Type Scale Load Cell For Hopper Scale





Features :

  • Model:F2802
  • Tension and compression load cell
  • High comprehensive precision, high stability
  • Simple structure, easy to install
  • Made of alloy steel or stainless steel
  • Good overload control
  • Capacity:50kg~5t



Descriptions:



F2802 is a S-beam load cell, it also called S-type load cell.



It can measure tension and compression force.



As it is made of alloy steel, you also can choose stainless steel, so the capacity is 50kg to 5t.



As the capacity are not all the same, the appearance are different, as you can see that the picture shows.



It has a high accuracy.



There is a hole on both sides, this makes it easy to install.



It comes complete 3.0m cable and the cable out let is pressing nut.



This kind can be used single, and be used two or more sets together, but they must be connected with Rod Ends Spherical Plain bearings or connecting rod, which is beneficial for weighing device in the way of hoisting equipment.



S-beam designing can be installed easily, which be available for crane scales, electronic mechanic Scales, hopper and tank weighing, packing scales, quantitative feeding machine, filling machine, universal material testing machine and other electronic weighing devices.





Applicatiosn:



S-beam designing can be installed easily, which be available for crane scales, electronic mechanic Scales, hopper and tank weighing, packing scales, quantitative feeding machine, filling machine, universal material testing machine and other electronic weighing devices.





Technical parameters:



Specifications

Technique

Rated output

2.0±5%mV/V

Zero balance

±2% F.S.

Non-linearity

0.03% F.S.

Hysteresis

0.03% F.S.

Repeatability

0.03% F.S.

Creep (30min)

0.03% F.S.

Temp. effect on output

0.025% F.S. / 10ºC

Temp. effect on zero

0.025% F.S. / 10ºC

Input impedance

385±30Ω

Output impedance

350±3Ω

Insulation

≥5000MΩ/ 100VDC

Recommended excitation

10V

Maximum excitation

15V

Compensated temp. range

- 10~60ºC

Operation temp. range

- 20~80ºC

Safe overload

150% F.S.

Ultimate overload

200% F.S.

Cable size

3000 mm

Protection class

IP65(<500kg)

IP67(≥500kg)

Cable color code

Input: Red(+) Black(-);

Output: Green(+) White(-);































































Size and capacity:



High Accuracy Compression Type Scale Load Cell For Hopper Scale



Load Direction:



High Accuracy Compression Type Scale Load Cell For Hopper Scale



Schematic Wiring Diagram :



High Accuracy Compression Type Scale Load Cell For Hopper Scale



Product details:

High Accuracy Compression Type Scale Load Cell For Hopper Scale
