Single Point Tensile Load Cell Weighing System IP 65 Force Torque Sensor

China Single Point Tensile Load Cell Weighing System IP 65 Force Torque Sensor supplier

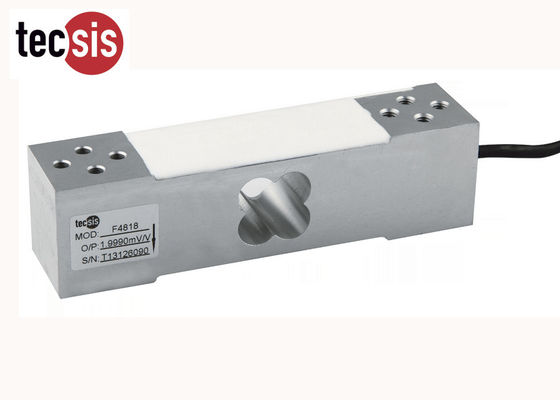

Large Image :  Single Point Tensile Load Cell Weighing System IP 65 Force Torque Sensor

Product Details:

Place of Origin: China
Brand Name: tecsis
Model Number: F4818

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: negotiation
Packaging Details: Standard: carton
Delivery Time: Stock product:3~5 working days , No stock:10~35 days
Payment Terms: L/C, T/T
Supply Ability: 20,000pcs per month
Contact Now
Detailed Product Description
Product Name: F4818 Type: Single Point Load Cell
Material: Aluminum Alloy Customized: Acceptable
Capacity: 20kg~500kg OEM/ODM: Acceptable
Protection Class: IP65 Usage: Weighing System

Single Point Tensile Load Cell Weighing System IP 65 Force Torque Sensor



Features :

  • Model:F4818
  • Capacity: 20kg~500kg
  • Simple structure, easy to install
  • High comprehensive precision, high stability
  • Made of aluminum alloy
  • IP65 protection
  • Delicate structure



Description:



F4818 is a kind of Single Point Load Cell, It is made of aluminum alloy.



There are 4 holes on both sides, it will be more accurate to maesure the force and easy to install.



The capacity is 20~500kg and the size is 150*40*35mm.



It comes with complete 1.5m cable.



The protection level reaches to IP65.



Recommended platform size is 450mm×450mm.



F4818 can be used for Low profile platform scales (If choosing the suitable attachment), Packaging Scales, Retail Scales, Counting Scales, Electronic Scales, Post Scales, Chemical, Industries of Foods, Pharmaceuticals and other weighing systems.





Application:



F4818 can be used for Low profile platform scales (If choosing the suitable attachment), Packaging Scales, Retail Scales, Counting Scales, Electronic Scales, Post Scales, Chemical, Industries of Foods, Pharmaceuticals and other weighing systems.





Technical parameters:



Specifications

Technique

Rated output

2.0±10%mV/V

Zero balance

±2% F.S.

Non-linearity

0.02% F.S.

Hysteresis

0.02% F.S.

Repeatability

0.02% F.S.

Creep (30min)

0.02% F.S.

Temp. effect on output

0.025% F.S. / 10ºC

Temp. effect on zero

0.025% F.S. / 10ºC

Input impedance

410±10Ω

Output impedance

350±5Ω

Insulation

≥2000MΩ/ 100VDC

Recommended excitation

10V

Maximum excitation

15V

Compensated temp. range

- 10~40ºC

Operation temp. range

- 20~60ºC

Safe overload

120% F.S.

Ultimate overload

200% F.S.

Cable size

Ø5×1500 mm

Platform size

450×450mm

Protection class

IP65

Cable color code

Input: Red(+) Black(-);

Output: Green(+) White(-);

































































Size and capacity:



Single Point Tensile Load Cell Weighing System IP 65 Force Torque Sensor



Load Direction:



Single Point Tensile Load Cell Weighing System IP 65 Force Torque Sensor





Schematic Wiring Diagram :



Single Point Tensile Load Cell Weighing System IP 65 Force Torque Sensor
