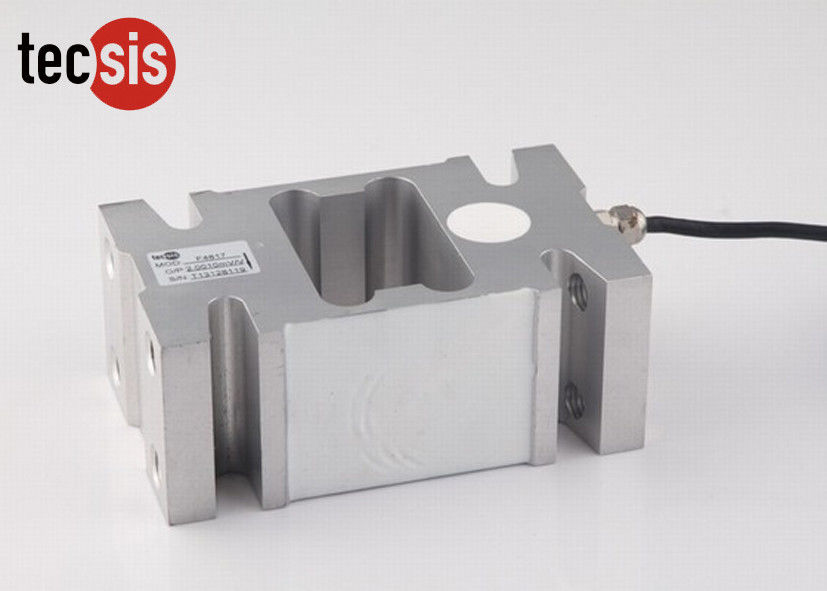

Product Name: F4817 Type: Single Point Load Cell
Material: Aluminum Alloy Customized: Acceptable
Capacity: 100kg~2T OEM/ODM: Acceptable
Protection Class: IP65 Usage: Weighing System
High Light:

small load cell

,

precision load cell

Large Capacity Force Sensor Load Cell Accuracy Tension And Compression





Features :

  • Model:F4817
  • Capacity: 100kg~2t
  • Simple structure, easy to install
  • High comprehensive precision, high stability
  • Made of aluminum alloy
  • IP65 protection
  • Delicate structure



Description:



F4817 load cell is available in the capacities 100kg to 2t, its structure is very compact, easy to install.



It has the function of high stability, F4817 is designed for electronic scales and platform scales where only one load cell can be used and low profile is required.



Recommended platform size is 800mm×1000mm for 100~600kg and it is 1200mm×1200mm for 750~2000kg.



F4817 is a kind of Single Point Load Cell, It is made of aluminum alloy, and its surface must be anodized.



The protection level reaches to IP65, which provide excellent protection against moisture ingression.



High accuracy and high side tolerance.



F4817 can be used for Low profile platform scales (If choosing the suitable attachment), Packaging Scales, Retail Scales, Counting Scales, Electronic Scales, Post Scales, Chemical, Industries of Foods, Pharmaceuticals and other weighing systems.





Application:



F4817 can be used for Low profile platform scales (If choosing the suitable attachment), Packaging Scales, Retail Scales, Counting Scales, Electronic Scales, Post Scales, Chemical, Industries of Foods, Pharmaceuticals and other weighing systems.





Technical parameters:



Specifications

Technique

Rated output

2.0±10%mV/V

Zero balance

±2% F.S.

Non-linearity

0.02% F.S.

Hysteresis

0.02% F.S.

Repeatability

0.02% F.S.

Creep (30min)

0.02% F.S.

Temp. effect on output

0.025% F.S. / 10ºC

Temp. effect on zero

0.025% F.S. / 10ºC

Input impedance

410±10Ω

Output impedance

350±5Ω

Insulation

≥5000MΩ/ 100VDC

Recommended excitation

10V

Maximum excitation

15V

Compensated temp. range

- 10~40ºC

Operation temp. range

- 20~60ºC

Safe overload

150% F.S.

Ultimate overload

200% F.S.

Cable size

Ø5×6000 mm

Platform size

800×1000mm(100~600kg)

1200×1200mm(750~2000kg)

Protection class

IP65

Cable color code

Input: Red(+) Black(-);

Output: Green(+) White(-);



































































Size and capacity:
