Detailed Product Description

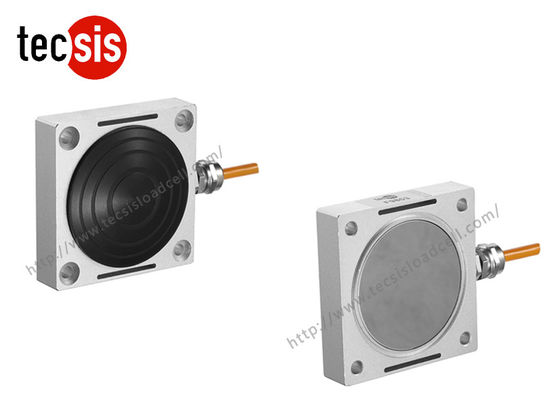

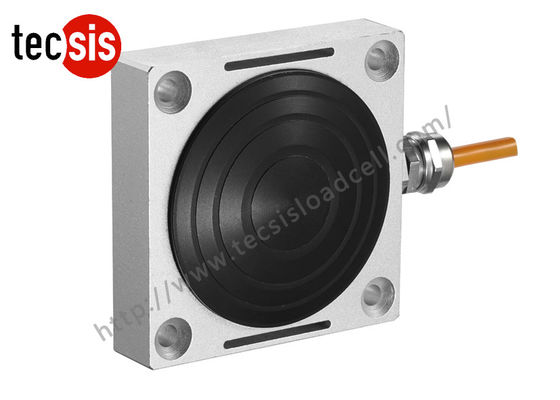

Product Name: F9803 Brake Pedal Force Load Cell Height: 21.5mm
Material: Aluminum Alloy Customized: Acceptable
Capacity: 500N~2500N OEM/ODM: Acceptable
Protection Class: IP65 Usage: Brake Pedal Force Measurement



Compression Force Sensor Load Cell 500n To 2500n For Brake Pedal Force





Features :

  • Model:F9803
  • Capacity: 500~2500N
  • Simple structure, easy to install
  • High comprehensive precision, high stability
  • Made of aluminum alloy
  • Small deflection
  • Delicate structure, Low profile



Description:



F9803 is made of aluminum alloy, it has a high accuracy. The capacity can be 500N to 2500N ,it is mainly used for brake pedal force measurement.



Application:



Mainly used for brake pedal force measurement.





Technical parameters:



Specifications

Technique

Rated output

1.5±10%mV/V

Zero balance

±2% F.S.

Non-linearity

0.25% F.S.

Hysteresis

0.1% F.S.

Repeatability

0.1% F.S.

Creep (30min)

0.2% F.S.

Temp. effect on output

0.05% F.S. / 10ºC

Temp. effect on zero

0.03% F.S. / 10ºC

Input impedance

780±30Ω

Output impedance

700±10Ω

Insulation

≥2000MΩ/ 50VDC

Recommended excitation

10V

Maximum excitation

15V

Compensated temp. range

- 10~60ºC

Operation temp. range

- 20~80ºC

Safe overload

120% F.S.

Ultimate overload

200% F.S.

Cable size

Ø4×3000 mm

Protection class

IP65

Cable color code

Input: Red(+) Black(-);

Output: Green(+) White(-);





























































Size and capacity:
