Detailed Product Description
Product Name: F3833 Type: Bending Beam
Material: Stainless Steel Customized: Acceptable
Capacity: 20kg~1500kg OEM/ODM: Acceptable
Protection Class: IP67 Usage: Weighing System

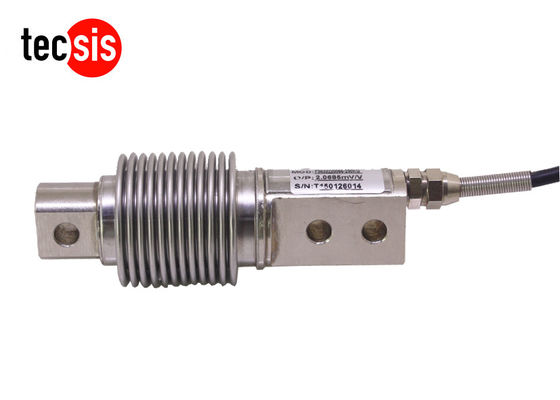

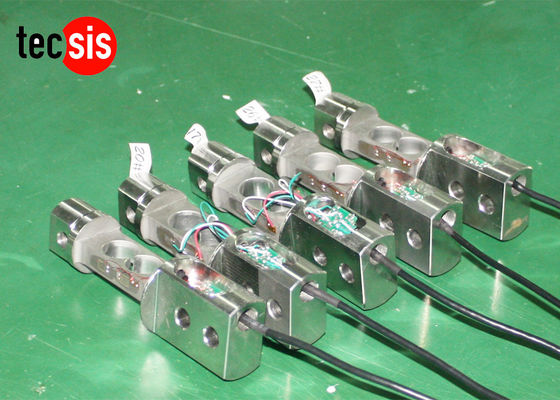

Small Double Ended Bending Beam Load Cell Strain Gauge Force Sensor 20kg 500kg





Features :

  • Model:F3833
  • Capacity: 20kg~1500kg
  • Simple structure, easy to install
  • High comprehensive precision, high stability
  • Made of stainless steel
  • Small deflection
  • Delicate structure



Description:



F3833 is a kind of Double Ended Bending Beam Load Cell, it belongs to Compression Load Cell, it is made of Stainless steel,  it is fully potted with special chemical compounds to IP67 to protect the cell from water and moisture attack, the capacity of anti deviated load and impact is very strong.



F3833 load cell is welded-on metal bellows, it is available in the capacities 20kg to 1500kg, its structure is very compact, it belong to high capacities with low profile, on the process of making this load cell, there is unavoidable to arise side force in the normal operations,



The design of steel ball and head structure provides excellent performance, which can reset and ensure the force transferring, the typical example for side force resistance is the application motor truck scales.

F3833 load cell can be used for Truck scales, rail scales, Hopper, tank weighing and Chemical, Industries of Foods, Pharmaceuticals, which has huge important on weighing and control.





Application:



F3833 is suitable for the fields of Truck scales, rail scales, Hopper, tank weighing and Chemical, Industries of Foods, Pharmaceuticals, which has huge important on weighing and control.





Technical parameters:



Specifications

Technique

Rated output

2.0±1%mV/V

Zero balance

±2% F.S.

Non-linearity

0.03% F.S.

Hysteresis

0.02% F.S.

Repeatability

0.02% F.S.

Creep (30min)

0.03% F.S.

Temp. effect on output

0.03% F.S. / 10ºC

Temp. effect on zero

0.03% F.S. / 10ºC

Input impedance

385±10Ω

Output impedance

350±5Ω

Insulation

≥5000MΩ/ 100VDC

Recommended excitation

10V

Maximum excitation

15V

Compensated temp. range

- 10~60ºC

Operation temp. range

- 20~80ºC

Safe overload

150% F.S.

Ultimate overload

200% F.S.

Cable size

Ø5×3000 mm

Protection class

IP67

Cable color code

Input: Red(+) Black(-);

Output: Green(+) White(-);



























































Size and capacity:



Small Double Ended Bending Beam Load Cell Strain Gauge Force Sensor 20kg 500kg





Schematic Wiring Diagram :



Small Double Ended Bending Beam Load Cell Strain Gauge Force Sensor 20kg 500kg
