Product Name: F3831 Type: Shear Beam
Material: Alloy Steel Customized: Acceptable
Capacity: 100kg~10t OEM/ODM: Acceptable
Protection Class: IP65 Or IP67 Usage: Weighing System
High Light:

Double Ended Shear Beam Load Cell

,

shear beam type load cell

Small Hopper Shear Beam Compression Load Cell Strain Gauge Of Alloy Steel





Features :

  • Model:F3831
  • Capacity: 100kg~10t
  • Simple structure, easy to install
  • High comprehensive precision, high stability
  • Made of alloy steel
  • Small deflection
  • Delicate structure



Description:

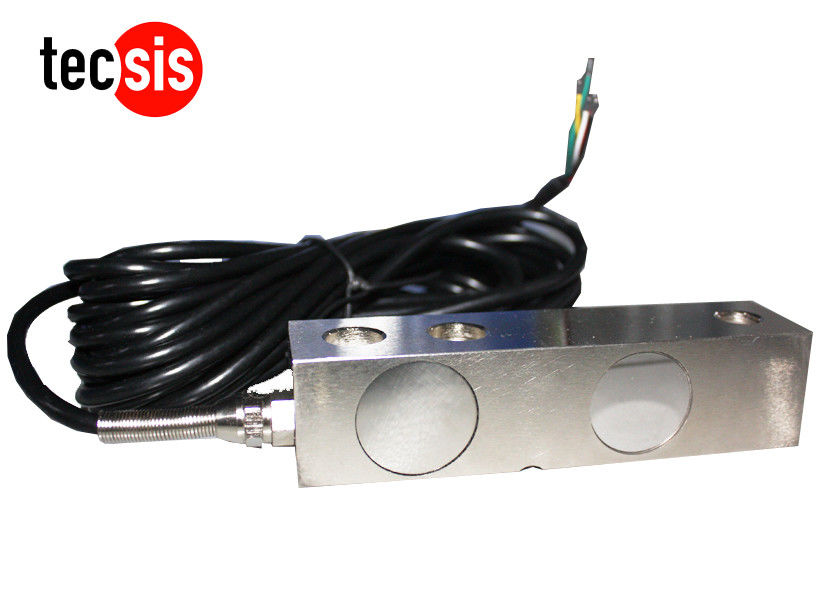

F3831 is a kind of Double Ended Shear Beam Load Cell, it belongs to Compression Load Cell, it is made of alloy steel,  it is fully potted with special chemical compounds to IP67(≥500kg) to protect the cell from water and moisture attack, the capacity of anti deviated load and impact is very strong.



F3831 load cell is available in the capacities 100kg to 10t, its structure is very compact, it belong to high capacities with low profile, on the process of making this load cell, there is unavoidable to arise side force in the normal operations,



The design of steel ball and head structure provides excellent performance, which can reset and ensure the force transferring, the typical example for side force resistance is the application motor truck scales.

F3831 load cell can be used for Truck scales, rail scales, Hopper, tank weighing and Chemical, Industries of Foods, Pharmaceuticals, which has huge important on weighing and control.





Application:



F3831 is suitable for the fields of Truck scales, rail scales, Hopper, tank weighing and Chemical, Industries of Foods, Pharmaceuticals, which has huge important on weighing and control.





Technical parameters:



Specifications

Technique

Rated output

2.0±10%mV/V

3.0±10%mV/V (Option)

Zero balance

±2% F.S.

Non-linearity

0.03% F.S.

Hysteresis

0.03% F.S.

Repeatability

0.03% F.S.

Creep (30min)

0.03% F.S.

Temp. effect on output

0.025% F.S. / 10ºC

Temp. effect on zero

0.025% F.S. / 10ºC

Input impedance

385±10Ω

Output impedance

350±5Ω

Insulation

≥5000MΩ/ 100VDC

Recommended excitation

10V

Maximum excitation

15V

Compensated temp. range

- 10~60ºC

Operation temp. range

- 20~80ºC

Safe overload

150% F.S.

Ultimate overload

200% F.S.

Cable size

Ø5×6000 mm

Protection class

IP65(<500kg)

IP67(≥500kg)

Cable color code

Input: Red(+) Black(-);

Output: Green(+) White(-);
