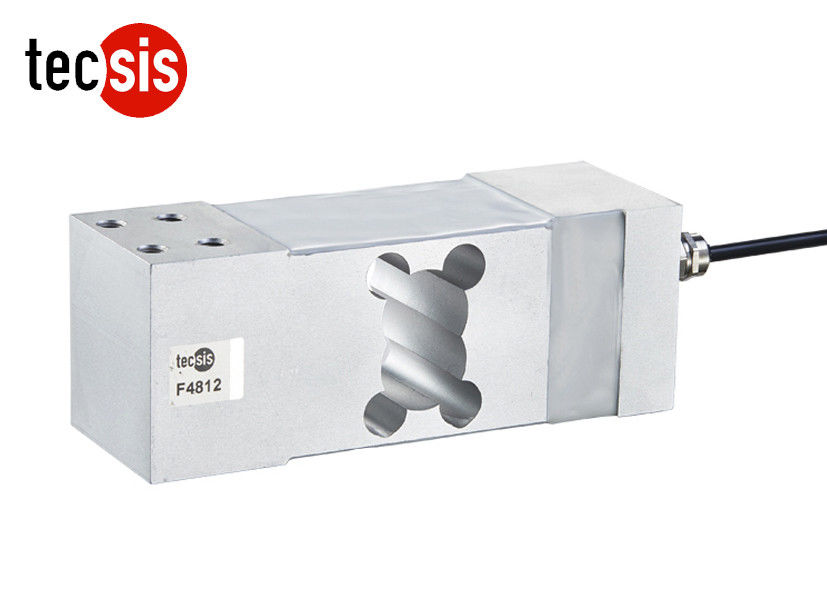

Aluminum Single Point Strain Gauge Load Cell With High Capacity 50kg - 650kg

China Aluminum Single Point Strain Gauge Load Cell With High Capacity 50kg - 650kg supplier

Large Image :  Aluminum Single Point Strain Gauge Load Cell With High Capacity 50kg - 650kg

Product Details:

Place of Origin: China
Brand Name: tecsis
Model Number: F4812

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: negotiation
Packaging Details: Standard: carton
Delivery Time: Stock product:3~5 working days , No stock:10~35 days
Payment Terms: L/C, T/T
Supply Ability: 20,000pcs per month
Contact Now
Detailed Product Description
Product Name: F4812 Type: Single Point Load Cell
Material: Aluminum Alloy Customized: Acceptable
Capacity: 50kg~650kg OEM/ODM: Acceptable
Protection Class: IP65 Usage: Weighing System
High Light:

mechanical load cell

,

load cell sensors

Aluminum Single Point Strain Gauge Load Cell With High Capacity 50kg - 650kg





Features :

  • Model:F4812
  • Capacity: 50kg~650kg
  • Simple structure, easy to install
  • High comprehensive precision, high stability
  • Made of aluminum alloy
  • IP65 protection
  • Delicate structure



Description:



Has the function of high stability and high accuracy, F4812 is designed for electronic scales and platform scales where only one load cell can be used and low profile is required. Recommended platform size is 450mm×550mm, the design is most suitable for mass production operations.



F4812 is a kind of Single Point Load Cell, It is made of aluminum alloy, and its surface must be anodized.



F4812 load cell is available in the capacities 50kg to 650kg, its structure is very compact, there are 4 holes on each sides,  it can be stable to measure the force and easy to install,



The protection level reaches to IP65.



It comes with complete 2.0m cable.



F4812can be used for Low profile platform scales (If choosing the suitable attachment), Packaging Scales, Retail Scales, Counting Scales, Electronic Scales, Post Scales, Chemical, Industries of Foods, Pharmaceuticals and other weighing systems.





Application:



F4811 can be used for Low profile platform scales (If choosing the suitable attachment), Packaging Scales, Retail Scales, Counting Scales, Electronic Scales, Post Scales, Chemical, Industries of Foods, Pharmaceuticals and other weighing systems.





Technical parameters:



Specifications

Technique

Rated output

2.0±10%mV/V

Zero balance

±2% F.S.

Non-linearity

0.02% F.S.

Hysteresis

0.02% F.S.

Repeatability

0.02% F.S.

Creep (30min)

0.02% F.S.

Temp. effect on output

0.025% F.S. / 10ºC

Temp. effect on zero

0.025% F.S. / 10ºC

Input impedance

410±10Ω

Output impedance

350±5Ω

Insulation

≥5000MΩ/ 100VDC

Recommended excitation

10V

Maximum excitation

15V

Compensated temp. range

- 10~40ºC

Operation temp. range

- 20~60ºC

Safe overload

150% F.S.

Ultimate overload

200% F.S.

Cable size

Ø5×2000 mm

Platform size 450×550mm

Protection class

IP65

Cable color code

Input: Red(+) Black(-);

Output: Green(+) White(-);

































































Size and capacity:



Aluminum Single Point Strain Gauge Load Cell With High Capacity 50kg - 650kg





Load Direction:



Aluminum Single Point Strain Gauge Load Cell With High Capacity 50kg - 650kg





Schematic Wiring Diagram :



Aluminum Single Point Strain Gauge Load Cell With High Capacity 50kg - 650kg



Product Details:



Aluminum Single Point Strain Gauge Load Cell With High Capacity 50kg - 650kg
