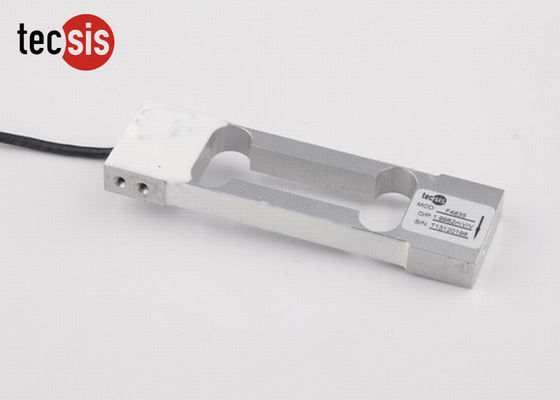

Low Profile Strain Gauge Load Cell Sensors , Platform Scale Load Cell 1kg

China Low Profile Strain Gauge Load Cell Sensors , Platform Scale Load Cell 1kg supplier

Large Image :  Low Profile Strain Gauge Load Cell Sensors , Platform Scale Load Cell 1kg

Product Details:

Place of Origin: China
Brand Name: tecsis
Model Number: F4835

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: negotiation
Packaging Details: Standard: carton
Delivery Time: Stock product:3~5 working days , No stock:10~35 days
Payment Terms: L/C, T/T
Supply Ability: 20,000pcs per month
Contact Now
Detailed Product Description
Product Name: F4835 Type: Single Point Load Cell
Material: Aluminum Alloy Customized: Acceptable
Capacity: 0.3kg~2kg OEM/ODM: Acceptable
Protection Class: IP65 Usage: Weighing System

Low Profile Strain Gauge Load Cell Sensors , Platform Scale Load Cell 1kg





Features :

  • Model:F4835
  • Capacity: 0.3kg~2kg
  • Simple structure, easy to install
  • High comprehensive precision, high stability
  • Made of aluminum alloy
  • IP65 protection
  • Delicate structure



Description:



F4835 is a kind of Single Point Load Cell, It is made of aluminum alloy, Aluminum processing is different from alloy steel material manufacture processing, and its surface must be anodized. The protection level reaches to IP65, which provide excellent protection against moisture ingression.



F4835 load cell is available in the capacities 0.3kg to 2kg, its structure is very compact, very light, small size with profile, and easy to install, its precision is reach to 0.02%, has the function of high stability, F4835 is designed for electronic scales and platform scales where only one load cell can be used and low profile is required. Recommended platform size is 100mm×150mm, the design is most suitable for mass production operations.



F4835 can be used for Low profile platform scales (If choosing the suitable attachment), Packaging Scales, Retail Scales, Counting Scales, Electronic Scales, Chemical, Industries of Foods, Pharmaceuticals and other weighing systems.





Application:



F4835 can be used for Low profile platform scales (If choosing the suitable attachment), Packaging Scales, Retail Scales, Counting Scales, Electronic Scales, Chemical, Industries of Foods, Pharmaceuticals and other weighing systems.





Technical parameters:



Specifications

Technique

Rated output

1.0±10%mV/V

Zero balance

±2% F.S.

Non-linearity

0.02% F.S.

Hysteresis

0.02% F.S.

Repeatability

0.02% F.S.

Creep (30min)

0.02% F.S.

Temp. effect on output

0.025% F.S. / 10ºC

Temp. effect on zero

0.025% F.S. / 10ºC

Input impedance

410±10Ω

Output impedance

350±5Ω

Insulation

≥5000MΩ/ 100VDC

Recommended excitation

10V

Maximum excitation

15V

Compensated temp. range

- 10~40ºC

Operation temp. range

- 20~60ºC

Safe overload

150% F.S.

Ultimate overload

200% F.S.

Cable size

Ø3×450 mm

Platform size 100×150mm

Protection class

IP65

Cable color code

Input: Red(+) Black(-);

Output: Green(+) White(-);



























































Size and capacity:



Low Profile Strain Gauge Load Cell Sensors , Platform Scale Load Cell 1kg





Schematic Wiring Diagram :



Low Profile Strain Gauge Load Cell Sensors , Platform Scale Load Cell 1kg
