Strain Gauge Force Sensor Load Cell Strain Type Sensor High Accuracy Load Cell

China Strain Gauge Force Sensor Load Cell Strain Type Sensor High Accuracy Load Cell supplier
Strain Gauge Force Sensor Load Cell Strain Type Sensor High Accuracy Load Cell supplier Strain Gauge Force Sensor Load Cell Strain Type Sensor High Accuracy Load Cell supplier

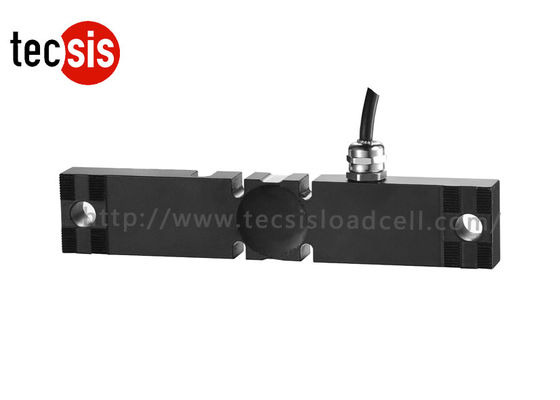

Large Image :  Strain Gauge Force Sensor Load Cell Strain Type Sensor High Accuracy Load Cell

Product Details:

Place of Origin: China
Brand Name: tecsis
Model Number: F9846

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: negotiation
Packaging Details: Standard: carton
Delivery Time: Stock product:3~5 working days , No stock:10~35 days
Payment Terms: L/C, T/T
Supply Ability: 20,000pcs per month
Contact Now
Detailed Product Description
Product Name: F9846 Structure: Compact
Material: Stainless Steel Customized: Acceptable
Capacity: 200~1000με OEM/ODM: Acceptable
Type: Column Theory: Resistance Sensor
High Light:

small load cell

,

precision load cell

Miniature Stainless Steel Hydraulic Oil Pressure Sensor , High Precision





Features :

  • Model:P3803
  • Hydraulic pressure sensor
  • High comprehensive precision, high stability
  • Capacity:100kPa~60MPa
  • Made of stainless steel



Description:



P3803 hydraulic pressure sensor is Made of stainless steel, It has a small size and with high sensitivity. It is suitable for  Hydraulic, die-casting, central air conditioning system, constant pressure water supply, locomotive braking systems, light industry, machinery, metallurgy, petrochemical, environmental protection, air compressor and other automatic control systems.



Applications:



It is suitable for  Hydraulic, die-casting, central air conditioning system, constant pressure water supply, locomotive braking systems, light industry, machinery, metallurgy, petrochemical, environmental protection, air compressor and other automatic control systems.





Technical parameters:



Specifications

Technique

Output signal

2 wires

4~20mA

3 wires 0~5V, 1~5V, 0~10V
4 wires 0~10mV
Comprehensive accuracy 0.25~0.5% F.S.
Power supply 5~10VDC( Sensor)
12~30VDC(Transmitter)

Medium temperature

-20ºC~85ºC
-20ºC~150ºC(Option)

Ambient temperature

-20ºC~85ºC

Load resistance

Voltage type ≥50kΩ
Current type ≤800Ω

Insulation

≥5000MΩ / 50VDC

Response time

10ms

Protection class

IP65

Long term stability

0.1% F.S./ Year

Vibration effects

Impact is less than 0.2% F.S.

Electrical interface

M12×1
Direct wireØ5x1500mm

Hessman lines
Customized

Thread connection

M12×1,Check the selection table























































Size and capacity:



Strain Gauge Force Sensor Load Cell Strain Type Sensor High Accuracy Load Cell
