Multi Axis Load Cell High Accuracy Force Sensor Waterproof 10kg ~ 100kg

China Multi Axis Load Cell  High Accuracy Force Sensor  Waterproof 10kg ~ 100kg supplier

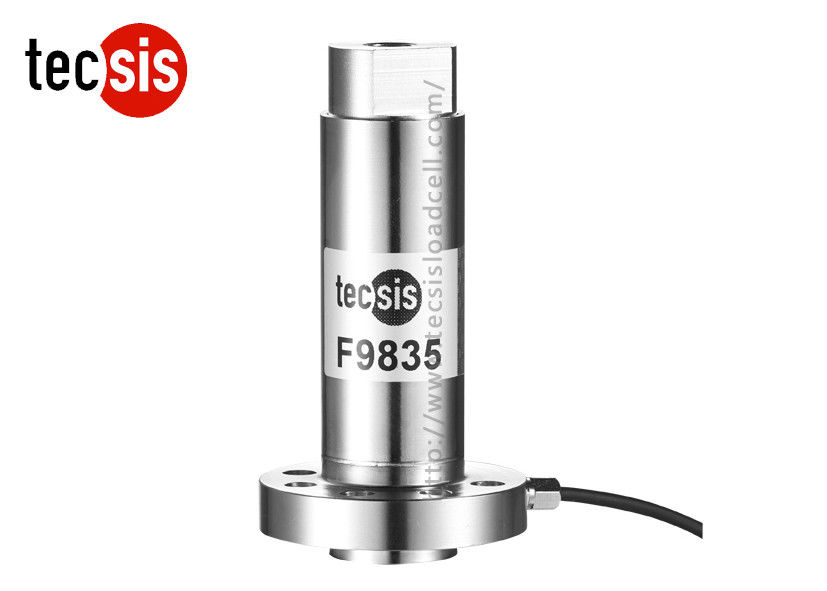

Large Image :  Multi Axis Load Cell High Accuracy Force Sensor Waterproof 10kg ~ 100kg

Product Details:

Place of Origin: China
Brand Name: tecsis
Model Number: F9835

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: negotiation
Packaging Details: Standard: carton
Delivery Time: Stock product:3~5 working days , No stock:10~35 days
Payment Terms: L/C, T/T
Supply Ability: 20,000pcs per month
Contact Now
Detailed Product Description
Product Name: F9835 Type: Column
Material: Stainless Steel Customized: Acceptable
Capacity: 10kg~100kg OEM/ODM: Acceptable
Protection Class: IP65 Usage: Three Dimensional Force

Electronic Hydraulic Pressure Sensor Waterproof IP68 For Water Level Measurement





Features :

  • Model:P3809
  • Hydraulic pressure sensor
  • High comprehensive precision, high stability
  • Capacity:1~200mH20
  • Made of stainless steel



Description:



P3809 Pressure sensor with isolated components, full scale linearity and temperature compensation,long term stability. Made of stainless steel. It is widely used in level measurement of electricity, wastewater treatment and industrial measuring and control. IP68 protection.



Applications:



Widely used in level measurement of electricity, wastewater treatment and industrial measuring and control.





Technical parameters:



Specifications

Technique

Comprehensive accuracy ±0.5% F.S.
Zero offset ±1% F.S.

Full scale offset

±0.05% F.S. /ºC

Zero temperature drift

±0.05% F.S. /ºC

Full scale drift

Voltage type ≥50kΩ
Current type ≤800Ω

Insulation

≥500MΩ / 50VDC

Recommended excitation

12~36VDC

Transmitter output

0~5 VDC (3-wire)
4~20mA (2-wire)

Compensated temp range

-40~85ºC

Operation temp. range

-20~121ºC

Deposited temp. range

-40~121ºC

Safe overload

300% F.S.

Ultimate overload 500% F.S.
Protection class IP68
Cable color code Input: Red(+) Black(-);
Output: Green(+) White(-);

















































Size and capacity:



Multi Axis Load Cell  High Accuracy Force Sensor  Waterproof 10kg ~ 100kg
