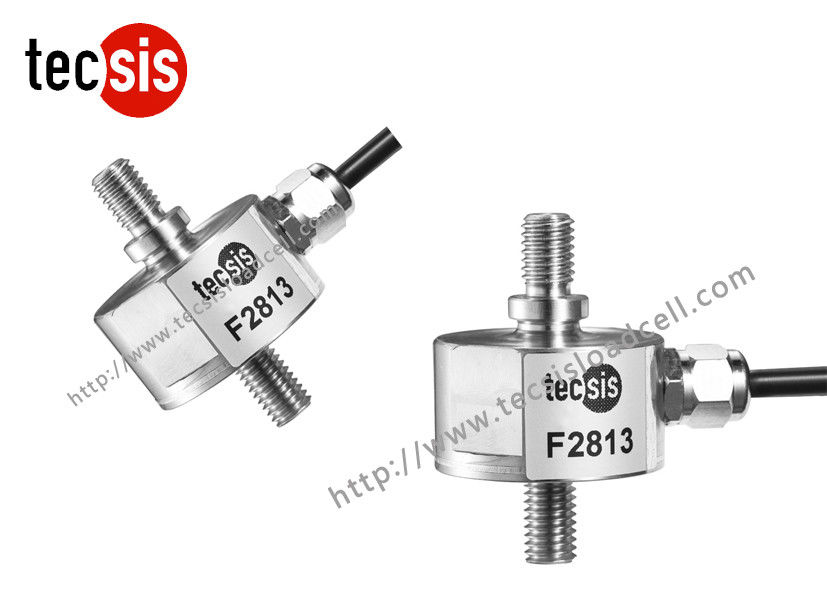

Product Name: F2813 Tension And Compression Load Cell Structure: Compact
Material: Stainless Steel Customized: Acceptable
Capacity: 150kg~500kg OEM/ODM: Acceptable
Theory: Resistance Sensor

Tension Compression Strain Gauge Load Cell Sensor 500kg , Waterproof  IP67





Features :

  • Model:F2813
  • Tension and compression load cell
  • High comprehensive precision, high stability
  • Simple structure, both sides threads, easy to install
  • Made of stainless steel
  • Capacity:150kg~500kg
  • Diameter:34mm
  • Large capacity



Description:



F2813 Force transducer is available in the capacities 150kg to 500kg, compare to F2811, it can measure large capacity. There are M8 threads on both sides of the load cell, this makes it easy to integrated into mechanical shaft.



F2813 Force transducer can be used single, it can be used for the small space or limited environment (if the output is rationalized). single load cell can be matched with weighing indicator, converting what you want to. It is made of stainless steel, this makes it has good stability. The protection class is IP67, it can be used in harsh environments.



As a force transducer, it is suitable for a wide range of applications including testing or weighing systems, for example, the weighing systems of material testing machines and Dynamometers.



Applications:



Mainly used for pull and push dynamometer, hopper scale and industrial measuring systems.





Technical parameters:



Specifications

Technique

Rated output

1.5±10%mV/V

Zero balance

±2% F.S.

Non-linearity

0.5% F.S.

Hysteresis

0.5% F.S.

Repeatability

0.5% F.S.

Creep (30min)

0.1% F.S.

Temp. effect on output

0.05% F.S. / 10ºC

Temp. effect on zero

0.05% F.S. / 10ºC

Input impedance

385±10Ω

Output impedance

350±5Ω

Insulation

≥2000MΩ / 100VDC

Recommended excitation

5~10V

Maximum excitation

15V

Compensated temp. range

- 10~60ºC

Operation temp. range

- 20~80ºC

Safe overload

120% F.S.

Ultimate overload

150% F.S.

Cable size

Ø4*1500 mm

Protection class

IP67

Cable color code

Input: Red(+) Black(-);

Output: Green(+) White(-);

























































Size and capacity:



Tension Compression Strain Gauge Load Cell Sensor 500kg , Waterproof  IP67



Schematic Wiring Diagram :



Tension Compression Strain Gauge Load Cell Sensor 500kg , Waterproof  IP67

Tension Compression Strain Gauge Load Cell Sensor 500kg , Waterproof  IP67
