Tension And Compression Column Type Load Cell For Truck Scale

China Tension And Compression Column Type Load Cell For Truck Scale supplier

Large Image :  Tension And Compression Column Type Load Cell For Truck Scale

Product Details:

Place of Origin: China
Brand Name: tecsis
Model Number: F1804

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: negotiation
Packaging Details: Standard: carton
Delivery Time: Stock product:3~5 working days No stock:10~35 days
Payment Terms: L/C, T/T
Supply Ability: 20,000pcs per month
Contact Now
Detailed Product Description

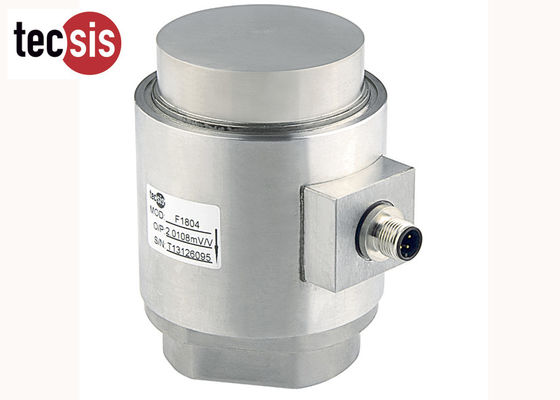

Product Name: F1804 Compression Load Cell Cable: M12*1-5P
Material: Alloy Steel Customized: Acceptable
Capacity: 5~50t OEM/ODM: Acceptable
Protection Class: IP67 Type: Column



Tension And Compression Column Type Load Cell For Truck Scale





Features :

  • Model:F1804
  • Daul spherical surface
  • Strong stability
  • Easy to install
  • Alloy steel
  • laser-welded
  • Up to 50t



applications:



F1804 load cells are available in the capacities from 5t to 50t. Alloy steel construction with Column type,automatic recovery. Fully seal welding ,silicon adhesive sealed inside, waterproof, anti-corrosion and suitable for all kinds of environment.  Column type structure design. Tension and/or compression loading and easy installation.

Suitable for truck scale, railway scale and other electronic weighing devices.





Technical parameters:



Specifications

Technique

Rated output

2.0±1%mV/V

3.0±1%mV/V (Option)

Zero balance

±1% F.S.

Non-linearity

0.05% F.S.

Hysteresis

0.05% F.S.

Repeatability

0.05% F.S.

Creep (30min)

0.05% F.S.

Temp. effect on output

0.03% F.S. / 10ºC

Temp. effect on zero

0.03% F.S. / 10ºC

Input impedance

385±10Ω

Output impedance

350±5Ω

Insulation

≥5000MΩ/ 100VDC

Recommended excitation

10V

Maximum excitation

15V

Compensated temp. range

- 10~60ºC

Operation temp. range

- 20~80ºC

Safe overload

150% F.S.

Ultimate overload

200% F.S.

Cable size

M12*1-5P

Protection class

IP67

Cable color code

Tension And Compression Column Type Load Cell For Truck Scale



































































Size and capacity:



Tension And Compression Column Type Load Cell For Truck Scale





Schematic Wiring Diagram :



Tension And Compression Column Type Load Cell For Truck Scale





Tension And Compression Column Type Load Cell For Truck Scale
