Compressive Transducer Strain Gauge Load Cell Weighing 10t For Tank

China Compressive Transducer Strain Gauge Load Cell Weighing 10t For Tank supplier
Compressive Transducer Strain Gauge Load Cell Weighing 10t For Tank supplier Compressive Transducer Strain Gauge Load Cell Weighing 10t For Tank supplier

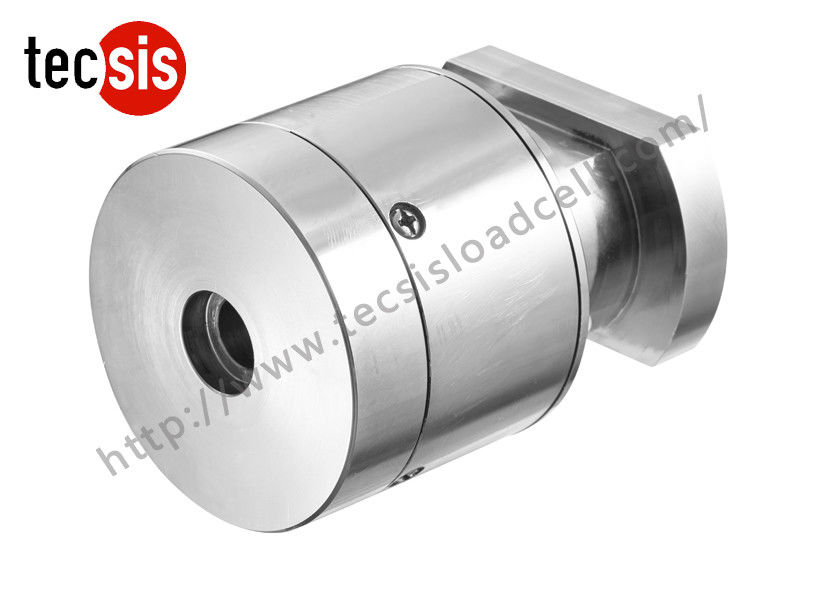

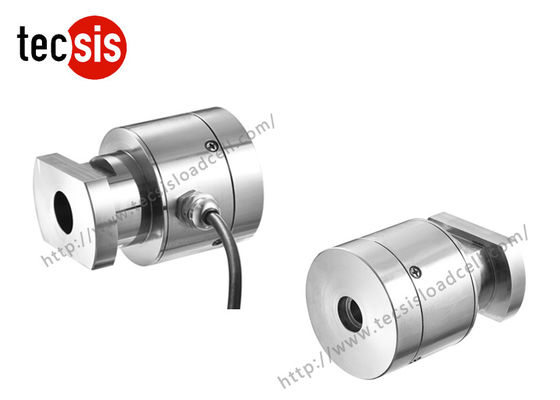

Large Image :  Compressive Transducer Strain Gauge Load Cell Weighing 10t For Tank

Product Details:

Place of Origin: China
Brand Name: tecsis
Model Number: F1833

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: negotiation
Packaging Details: Standard: carton
Delivery Time: Stock product:3~5 working days , No stock:10~35 days
Payment Terms: L/C, T/T
Supply Ability: 20,000pcs per month
Contact Now
Detailed Product Description
Product Name: F1833 Compression Load Cell Rated Output: 1.0±10%mV/V
Material: Alloy Steel Customized: Acceptable
Capacity: 6t, 10t OEM/ODM: Acceptable
Protection Class: IP65 Usage: Force Measurement
High Light:

tension load cell

,

load cell sensors

Compressive Transducer Strain Gauge Load Cell Weighing 10t For Tank





Features :

  • Model:F1833
  • Capacity: 6t, 10t
  • Good ultimate overload
  • High comprehensive precision, high stability
  • Made of alloy steel
  • Small deflection
  • Delicate structure



Description:



F1833 is designed for large-scale high-speed punching machines, such as metal, plastic,rubber stamping machines and other stamping applications.

lts capacities 6t and 10t,  and it comes complete with 3m of load cell cable.

The height is 80mm and the diameter is 60mm. It is suitable for many application.

It is made of alloy steel, this makes it can be used for most industrial environments.





Application:



Suitable for large-scale high-speed punching machines, such as metal, plastic,rubber stamping machines and other stamping applications.





Technical parameters:



Specifications

Technique

Rated output

1.0±10%mV/V

Zero balance

±2% F.S.

Non-linearity

0.5% F.S.

Hysteresis

0.1% F.S.

Repeatability

0.1% F.S.

Creep (30min)

0.05% F.S.

Temp. effect on output

0.05% F.S. / 10ºC

Temp. effect on zero

0.05% F.S. / 10ºC

Input impedance

750±10Ω

Output impedance

700±5Ω

Insulation

≥5000MΩ/ 100VDC

Recommended excitation

10V

Maximum excitation

15V

Compensated temp. range

- 10~60ºC

Operation temp. range

- 20~80ºC

Safe overload

150% F.S.

Ultimate overload

300% F.S.

Cable size

Ø5×3000 mm

Protection class

IP65

Cut off frequency(load cycles) 50Hz
Lifetime(load cycles) 107

Cable color code

Input: Red(+) Black(-);

Output: Green(+) White(-);



































































Size and capacity:



Compressive Transducer Strain Gauge Load Cell Weighing 10t For Tank



Load Direction:

Compressive Transducer Strain Gauge Load Cell Weighing 10t For Tank





Schematic Wiring Diagram :



Compressive Transducer Strain Gauge Load Cell Weighing 10t For Tank

Compressive Transducer Strain Gauge Load Cell Weighing 10t For Tank
