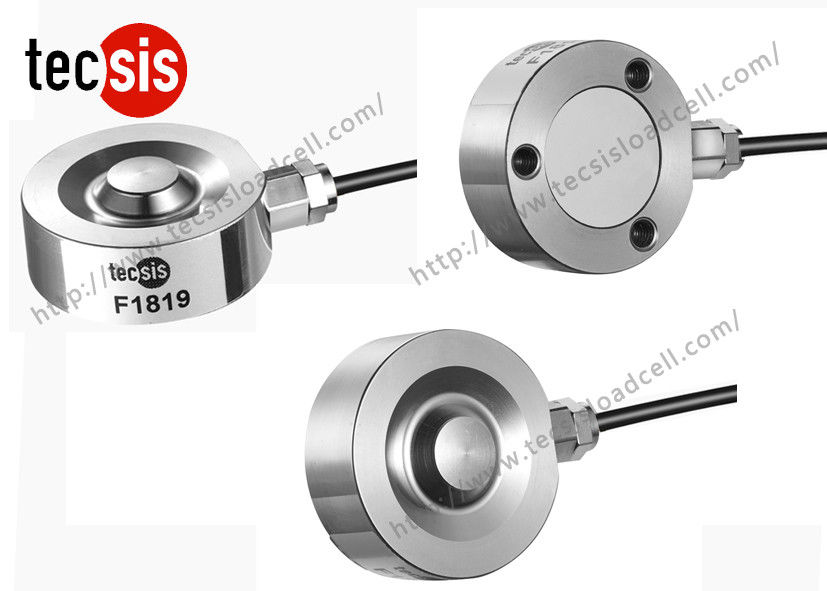

High Accuracy Stainless Steel Load Cell 50N - 120KN , Waterproof IP66

China High Accuracy Stainless Steel Load Cell 50N - 120KN , Waterproof IP66 supplier

Large Image :  High Accuracy Stainless Steel Load Cell 50N - 120KN , Waterproof IP66

Product Details:

Place of Origin: China
Brand Name: tecsis
Model Number: F1819

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: negotiation
Packaging Details: Standard: carton
Delivery Time: Stock product:3~5 working days , No stock:10~35 days
Payment Terms: L/C, T/T
Supply Ability: 20,000pcs per month
Contact Now
Detailed Product Description
Product Name: F1819 Force Load Cell Height: 16~25mm
Material: Stainless Steel Customized: Acceptable
Capacity: 50N~120KN OEM/ODM: Acceptable
Protection Class: IP66 Usage: Force Measurement
High Light:

column type load cell

,

button load cell

High Accuracy Stainless Steel Load Cell 50N - 120KN , Waterproof IP67





Features :

  • Model:F1819
  • Capacity: 50N~120KN
  • Simple structure, easy to install
  • High comprehensive precision, high stability
  • Small deflection
  • Delicate structure, Low profile
  • Made of stainless steel
  • Compression load cell
  • Button type load cell



Description:





F1819 miniature type is designed for low profile compression service. lts compact size makes the cell ideal for a wide range of applications including testing & weighing systems , R&D and other applications .



There are three holes in the background of the F1819 load cell, this makes it easy to install.



lts capacities range from 50N to 120KN and it comes complete with 3m of load cell cable.



Stainless steel construction. Fully welded seal with stainless steel cover for hostile environment applications.



Compact size with low profile. The apperance is customizable.



As the cable outlet is pressing nut, the protection class can be IP 66.





Application:



F1819 is suitable for a wide range of applications including testing or weighing systems, and it can be put into the device, in order to monitor the force. Measure the force in the limited space. Widely used for industrial measurement and control, R&D and other applications.



Technical parameters:



Specifications

Technique

Rated output

1.5±10%mV/V

Zero balance

±2% F.S.

Non-linearity

0.5% F.S.

Hysteresis

0.5% F.S.

Repeatability

0.5% F.S.

Creep (30min)

0.1% F.S.

Temp. effect on output

0.05% F.S. / 10ºC

Temp. effect on zero

0.05% F.S. / 10ºC

Input impedance

385±10Ω

Output impedance

350±5Ω

Insulation

≥5000MΩ/ 100VDC

Recommended excitation

5~10V

Maximum excitation

15V

Compensated temp. range

- 10~60ºC

Operation temp. range

- 20~80ºC

Safe overload

120% F.S.

Ultimate overload

200% F.S.

Cable size

Ø3×3000 mm

Protection class

IP66

Cable color code

Input: Red(+) Black(-);

Output: Green(+) White(-);





























































Size and capacity:



High Accuracy Stainless Steel Load Cell 50N - 120KN , Waterproof IP66



Load Direction:

High Accuracy Stainless Steel Load Cell 50N - 120KN , Waterproof IP66







Schematic Wiring Diagram :



High Accuracy Stainless Steel Load Cell 50N - 120KN , Waterproof IP66

High Accuracy Stainless Steel Load Cell 50N - 120KN , Waterproof IP66
