Through Hole Tension Compression Rod End Load Cell Force Transducer 100kg To 2t

China Through Hole Tension Compression Rod End Load Cell Force Transducer 100kg To 2t supplier

Large Image :  Through Hole Tension Compression Rod End Load Cell Force Transducer 100kg To 2t

Product Details:

Place of Origin: China
Brand Name: tecsis
Model Number: F2817

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: negotiation
Packaging Details: Standard: carton
Delivery Time: Stock product:3~5 working days , No stock:10~35 days
Payment Terms: L/C, T/T
Supply Ability: 20,000pcs per month
Contact Now
Detailed Product Description
Product Name: F2817 Tension And Compression Load Cell Structure: Compact
Material: 17-4PH Stainless Steel Customized: Acceptable
Capacity: 100kg~2t OEM/ODM: Acceptable
Theory: Resistance Sensor
High Light:

high precision load cell

,

tension link load cell

Through Hole Tension Compression Rod End Load Cell Force Transducer 100kg To 2t





Features :

  • Model:F2817
  • Tension and compression load cell
  • High comprehensive precision, high stability
  • Rod end structure, easy to install
  • Up to 2t
  • Made of stainless steel
  • Capacity:100kg~2t
  • Diameter:51mm



Description:

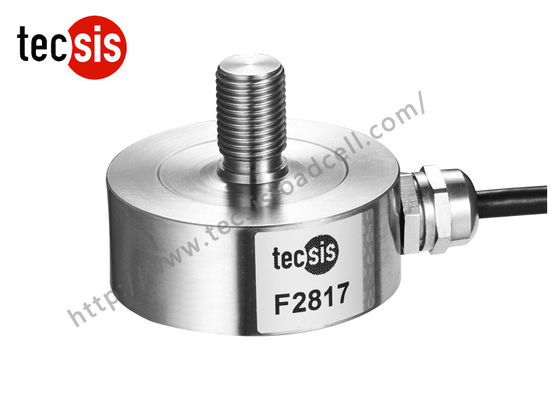

F2817 Force transducer is a rod end load cell.



There is a thread on one side and there are 4 holes on the other side. The structure makes it easy to install and to use.



It is made of 17-4PH stainless steel, the protection class is IP67, based on these features, it can be used in many humid enviroment.



The diameter is 51mm and the size of the thread is M12. it is suitable for force measurement in limited sapce.



It comes with complete 3m cable.



Widely used for easy installed micro miniature tension and pressure test equipment, crane scale, level indicator and other force measurement application.





Applications:



Widely used for easy installed micro miniature tension and pressure test equipment, crane scale, level indicator and other force measurement application.





Technical parameters:



Specifications

Technique

Rated output

1.5±10%mV/V

Zero balance

±2% F.S.

Non-linearity

≤0.5% F.S.

Hysteresis

≤0.5% F.S.

Repeatability

0.1% F.S.

Creep (30min)

0.2% F.S.

Temp. effect on output

0.05% F.S. / 10ºC

Temp. effect on zero

0.05% F.S. / 10ºC

Input impedance

385±10Ω

Output impedance

350±5Ω

Insulation

≥5000MΩ / 50VDC

Recommended excitation

10V

Maximum excitation

15V

Compensated temp. range

- 10~60ºC

Operation temp. range

- 20~80ºC

Safe overload

150% F.S.

Ultimate overload

200% F.S.

Cable size

Ø5*3000 mm

Protection class

IP67

Cable color code

Input: Red(+) Black(-);

Output: Green(+) White(-);































































Size and capacity:



Through Hole Tension Compression Rod End Load Cell Force Transducer 100kg To 2t

Load direction:



Through Hole Tension Compression Rod End Load Cell Force Transducer 100kg To 2t

Schematic Wiring Diagram :



Through Hole Tension Compression Rod End Load Cell Force Transducer 100kg To 2t

Through Hole Tension Compression Rod End Load Cell Force Transducer 100kg To 2t
