Detailed Product Description

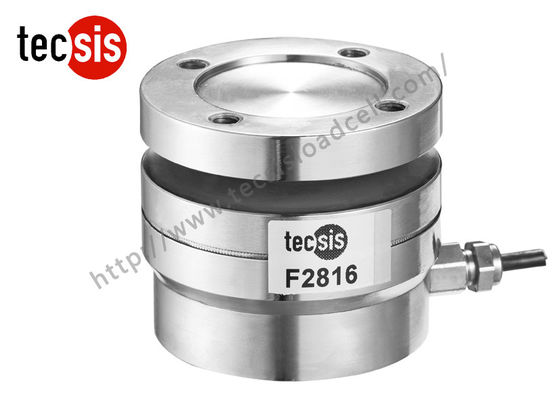

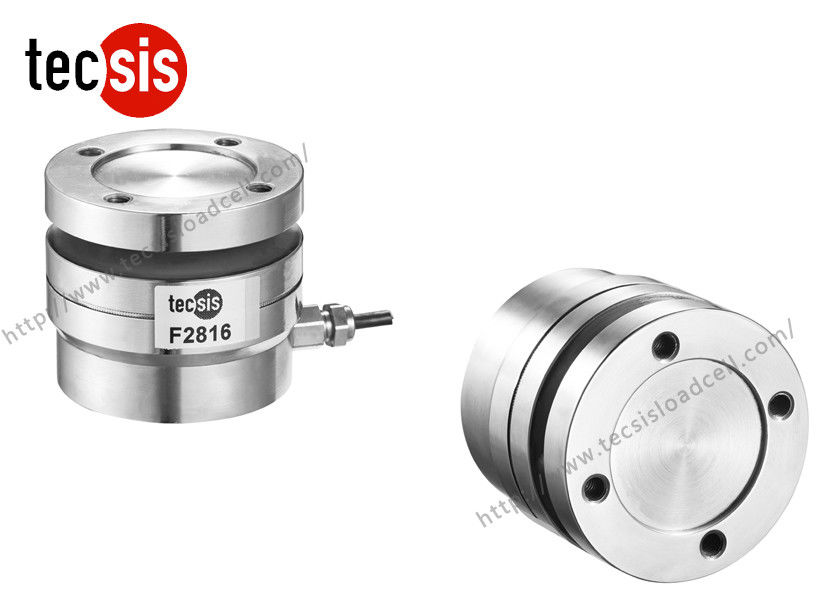

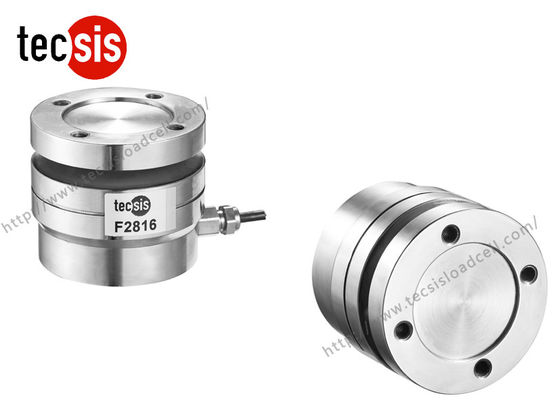

Product Name: F2816 Tension And Compression Load Cell Structure: Compact
Material: Stainless Steel Customized: Acceptable
Capacity: 0.5KN~100KN OEM/ODM: Acceptable
Theory: Resistance Sensor

Waterproof Tension Compressive Press Load Cell Force Sensor With Strain Gauge





Features :

  • Model:F2816
  • Tension and compression load cell
  • High comprehensive precision, high stability
  • Simple structure, both sizes threads, easy to install
  • Large capacity
  • Made of stainless steel
  • Capacity:0.5KN~100KN



Description:



F2816 Force transducer is available in the capacities 0.5KN to 100KN.



There are 4 holes on both sides of the load cell, this makes it easy to integrated into mechanical shaft.



The protection class is IP67, this makes it easy to used in kinds of harsh envirenment.



It comes with complete 3.0m cable.



It has a big force area, so the force will be more accurate.



Mainly used for compression force measuring systems.





Applications:



Mainly used for compression force measuring systems.





Technical parameters:



Specifications

Technique

Rated output

1.0±10%mV/V

Zero balance

±2% F.S.

Non-linearity

≤0.5% F.S.

Hysteresis

0.1% F.S.

Repeatability

0.1% F.S.

Creep (30min)

0.2% F.S.

Temp. effect on output

0.05% F.S. / 10ºC

Temp. effect on zero

0.05% F.S. / 10ºC

Input impedance

780±10Ω

Output impedance

700±5Ω

Insulation

≥5000MΩ / 100VDC

Recommended excitation

10V

Maximum excitation

15V

Compensated temp. range

- 10~60ºC

Operation temp. range

- 30~70ºC

Safe overload

150% F.S.

Ultimate overload

200% F.S.

Cable size

Ø3*3000 mm

Protection class

IP67

Cable color code

Input: Red(+) Black(-);

Output: Green(+) White(-);



























































Size and capacity:
