Product Name: F2813 Tension And Compression Load Cell Structure: Compact
Material: Stainless Steel Customized: Acceptable
Capacity: 150kg~500kg OEM/ODM: Acceptable
Theory: Resistance Sensor

Single Strain Gauge Tension Load Cell Compression Type With Weighing Indicator





Features :

  • Model:F2813
  • Large capacity
  • Made of stainless steel
  • Capacity:150kg~500kg
  • Tension and compression load cell
  • High comprehensive precision, high stability
  • Simple structure, both sides threads, easy to install
  • Diameter:34mm



Description:



F2813 Force transducer is available in the capacities 150kg to 500kg, compare to F2811, it can measure large capacity.



There are M8 threads on both sides of the load cell, this makes it easy to integrated into mechanical shaft.



F2813 Force transducer can be used single, it can be used for the small space or limited environment (if the output is rationalized). single load cell can be matched with weighing indicator, converting what you want to.



It is made of stainless steel, this makes it has good stability.



The protection class is IP67, it can be used in harsh environments.



The diameter is 34mm and the height is 51.5mm.


It comes with complete 1.5m cable.



As a force transducer, it is suitable for a wide range of applications including testing or weighing systems, for example, the weighing systems of material testing machines and Dynamometers.



Mainly used for easy installed micro miniature tension and pressure test equipment, crane scale, level indicator and other force measurement applications.





Applications:



Mainly used for easy installed micro miniature tension and pressure test equipment, crane scale, level indicator and testing machine, miniature tension and pressure test equipment, such as lamination machine, riveting machine, welding machine.





Technical parameters:



Specifications

Technique

Rated output

1.5±10%mV/V

Zero balance

±2% F.S.

Non-linearity

0.5% F.S.

Hysteresis

0.5% F.S.

Repeatability

0.5% F.S.

Creep (30min)

0.5% F.S.

Temp. effect on output

0.05% F.S. / 10ºC

Temp. effect on zero

0.05% F.S. / 10ºC

Input impedance

385±10Ω

Output impedance

350±5Ω

Insulation

≥2000MΩ / 100VDC

Recommended excitation

5~10V

Maximum excitation

15V

Compensated temp. range

- 10~60ºC

Operation temp. range

- 20~80ºC

Safe overload

120% F.S.

Ultimate overload

150% F.S.

Cable size

Ø4*3000 mm

Protection class

IP67

Cable color code

Input: Red(+) Black(-);

Output: Green(+) White(-);

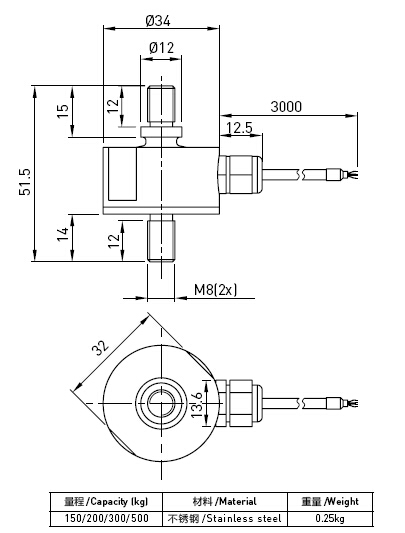

Size and capacity:
