Detailed Product Description

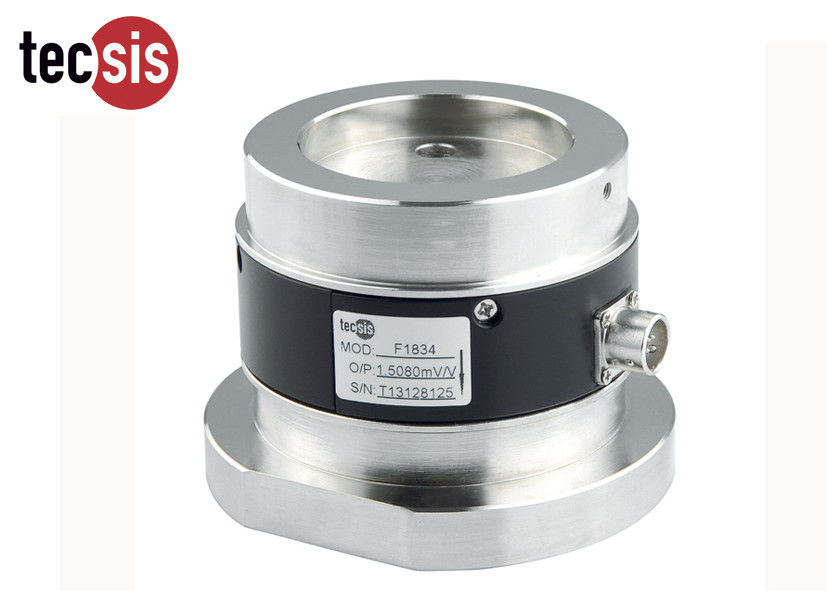

Product Name: F1834 Compression Load Cell Rated Output: 1.0±10%mV/V
Material: Alloy Steel Customized: Acceptable
Capacity: 30t, 40t, 50t OEM/ODM: Acceptable
Protection Class: IP65 Usage: Force Measurement
High Light:

capacitive load cell

,

compression type load cell



Alloy Steel Compression Load Cell Transducer For Industrial , High Precision





Features :

  • Model:F1834
  • Capacity: 30t, 40t, 50t
  • High comprehensive precision, high stability
  • Made of alloy steel
  • Small deflection
  • Delicate structure
  • Good ultimate overload



Description:



F1834 is mainly used in force measurement.

Its capacities 30t, 40t and 50t, and it comes complete with 3m of load cell cable.

As it is made of alloy steel and a little big, so the weight is 2.0kg.

The height is 80mm and the diameter is 90mm. It is suitable for many application.

It is made of alloy steel, this makes it can be used for most industrial environments.

Strong stability. Used in various automated stamping applications.

This products can be customization.

Designed for large-scale high-speed punching machines, such as metal, plastic,rubber stamping machines and other stamping applications.





Application:



large-scale high-speed punching machines, such as metal, plastic,rubber stamping machines and other stamping applications.





Technical parameters:



Specifications

Technique

Rated output

1.0±10%mV/V

Zero balance

±2% F.S.

Non-linearity

0.5% F.S.

Hysteresis

0.1% F.S.

Repeatability

0.1% F.S.

Creep (30min)

0.05% F.S.

Temp. effect on output

0.05% F.S. / 10ºC

Temp. effect on zero

0.05% F.S. / 10ºC

Input impedance

750±10Ω

Output impedance

700±5Ω

Insulation

≥5000MΩ/ 100VDC

Recommended excitation

10V

Maximum excitation

15V

Compensated temp. range

- 10~60ºC

Operation temp. range

- 20~80ºC

Safe overload

150% F.S.

Ultimate overload

300% F.S.

Cable size

Ø5×3000 mm

Protection class

IP65

Cut off frequency(load cycles) 50Hz
Lifetime(load cycles) 107

Cable color code

Input: Red(+) Black(-);

Output: Green(+) White(-);



































































Size and capacity:
