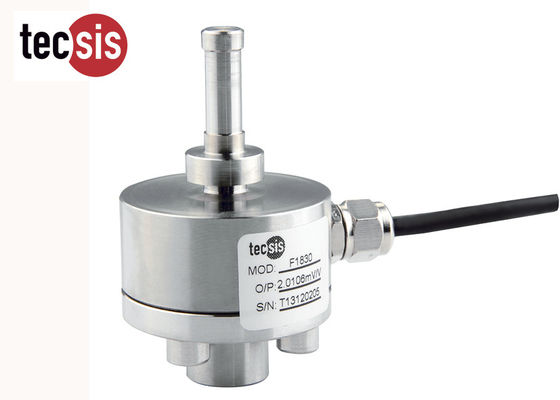

Compression Type Tank Weighing Load Cell , Stainless Steel Load Cell Sensor
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | F1830 Compression Load Sensor | Rated Output: | 1.5±10%mV/V |
|---|---|---|---|
| Material: | Stainless Steel | Customized: | Acceptable |
| Capacity: | 0.5~5KN | OEM/ODM: | Acceptable |
| Protection Class: | IP66 | Usage: | Press Force Measurement |
| High Light: | miniature compression load cell,compression type load cell |
||
Compression Type Tank Weighing Load Cell , Stainless Steel Load Cell Sensor
Features :
- Model:F1830
- Capacity: 0.5KN~5KN
- High comprehensive precision, high stability
- Made of stainless steel
- Small deflection
- Delicate structure
- Good ultimate overload
Description:
Stainless steel compression load cell.
Designed for press fitting equipment.
The height is 67mm and the max diameter is 40mm.
lts capacities 0.5KN to 5KN and it comes complete with 1.5m of load cell cable.
It is made of stainless steel, this makes it can be used for most industrial environments.
There are 4 holes on one side, this makes it easy to install.
Mainly used for press machines and press fitting equipment, can be designed according to the actual press machine.
Application:
F1830 is mainly used for press machines and press fitting equipment, can be designed according to the actual press machine.
Technical parameters:
|
Specifications |
Technique |
|
Rated output |
1.5±10%mV/V |
|
Zero balance |
±2% F.S. |
|
Non-linearity |
≤0.5% F.S. |
|
Hysteresis |
0.1% F.S. |
|
Repeatability |
0.1% F.S. |
|
Creep (30min) |
0.1% F.S. |
|
Temp. effect on output |
0.05% F.S. / 10ºC |
|
Temp. effect on zero |
0.05% F.S. / 10ºC |
|
Input impedance |
385±30Ω |
|
Output impedance |
350±5Ω |
|
Insulation |
≥5000MΩ/ 100VDC |
|
Recommended excitation |
10V |
|
Maximum excitation |
15V |
|
Compensated temp. range |
- 10~60ºC |
|
Operation temp. range |
- 20~80ºC |
|
Safe overload |
150% F.S. |
|
Ultimate overload |
200% F.S. |
|
Cable size |
Ø4×1500 mm |
|
Protection class |
IP66 |
|
Cable color code |
Input: Red(+) Black(-); Output: Green(+) White(-); |
Size and capacity:
Schematic Wiring Diagram :
