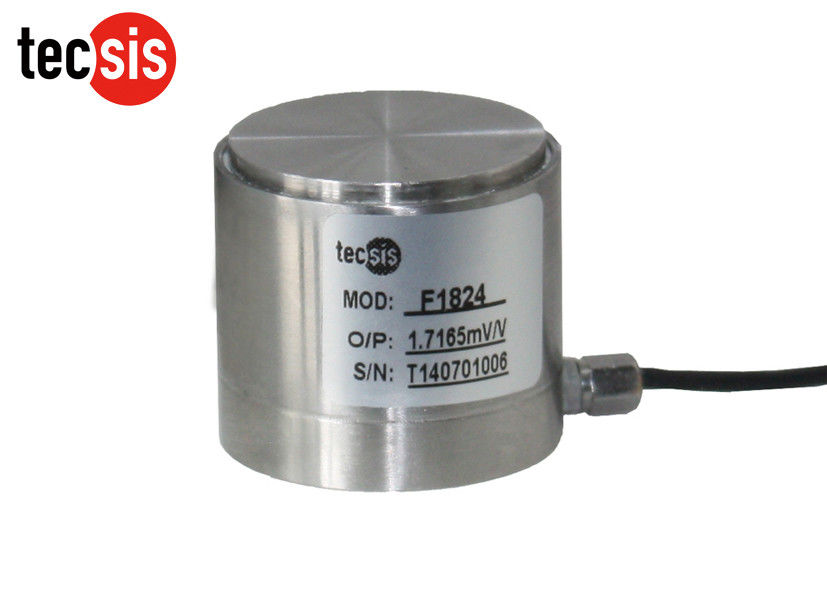

Product Name: F1824 Column Compression Load Sensor Height: 16.5~35mm
Material: Stainless Steel Customized: Acceptable
Capacity: 2~60klb OEM/ODM: Acceptable
Protection Class: IP65 Usage: Force Measurement

Custom Heavy Duty Compression Weighing Scale Load Cell Load Sensor





Features :

  • Model:F1824
  • Capacity: 2~60klb
  • Simple structure, easy to install
  • high stability
  • Made of stainless steel
  • Small deflection



Description:



F1824 is designed for low profile compression service.



It offers a large force area.



lts compact size makes the cell ideal for a wide range of applications including testing & weighing systems , R&D and other applications .



lts capacities range from 2klb to 60klb and it comes complete with 1.5m of load cell cable.



Stainless steel construction. Fully welded seal with stainless steel cover for hostile environment applications.



Column type measure the compression force.





Application:



F1824 is suitable for a wide range of applications including testing or weighing systems, and it can be put into the device, in order to monitor the force. Widely used for industrial measurement and control, R&D and other applications.





Technical parameters:



Specifications

Technique

Rated output

2.0±10%mV/V

Zero balance

±2% F.S.

Non-linearity

1% F.S.

Hysteresis

≤2% F.S.

Repeatability

0.5% F.S.

Creep (30min)

0.1% F.S.

Temp. effect on output

0.1% F.S. / 10ºC

Temp. effect on zero

0.1% F.S. / 10ºC

Input impedance

380±30Ω

Output impedance

350±5Ω

Insulation

≥5000MΩ/ 100VDC

Recommended excitation

5V

Maximum excitation

15V

Compensated temp. range

- 10~60ºC

Operation temp. range

- 20~80ºC

Safe overload

120% F.S.

Ultimate overload

150% F.S.

Cable size

Ø2×1500 mm

Protection class

IP65

Cable color code

Input: Red(+) Black(-);

Output: Green(+) White(-);
