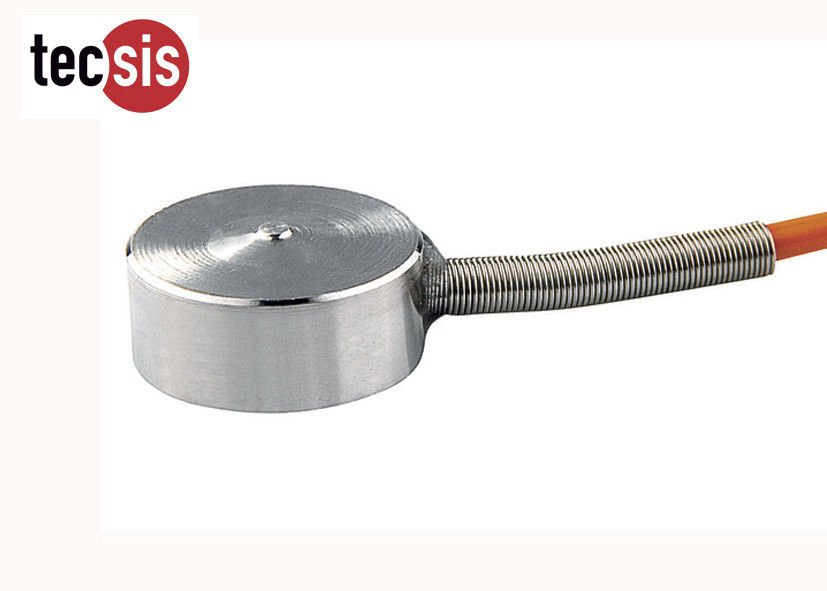

Product Name: F1816 Miniature Load Cell Height: 4~9.5mm
Material: Stainless Steel Or Aluminum Alloy Customized: Acceptable
Capacity: 5~100kg OEM/ODM: Acceptable
Protection Class: IP66 Cable: Option
High Light:

capacitive load cell

,

compression type load cell

Miniature Compression Load Cell With Stainless Steel Measure 5kg To 100kg





Features :

  • Model:F1816
  • Capacity: 5kg~100kg
  • Small deflection
  • Delicate structure, Low profile
  • Simple structure, easy to install
  • High comprehensive precision, high stability
  • Made of stainless steel or aluminum alloy
  • IP66



Description:



F1816 miniature type is designed for low profile compression service. lts compact size makes the cell ideal for a wide range of applications including testing & weighing systems , R&D and other applications .



Aluminum alloy or Stainless steel construction. Fully welded seal with stainless steel cover for hostile environment applications. Compact size with low profile.



There is a thermoplastic pipe on the cable, it is an adjustable resistance. As the Load cell is very small , we need to mount the adjustable resistance outside the load cell.



lts capacities range from 5Kg to 200kg and it comes complete with 1.5m of load cell cable. you can choose Aluminum alloy in the capacities 5kg, others you can choose stainless steel.



F1816 is suitable for a wide range of applications including testing or weighing systems, and it can be put into the device, in order to monitor the force. Measure the force in the limited space.





Application:



F1816 is suitable for a wide range of applications including testing or weighing systems, and it can be put into the device, in order to monitor the force. Measure the force in the limited space.



Technical parameters:



Specifications

Technique

Rated output

1.5±10%mV/V

Zero balance

±2% F.S.

Non-linearity

≤1% F.S.

Hysteresis

0.5% F.S.

Repeatability

0.5% F.S.

Creep (30min)

0.25% F.S.

Temp. effect on output

0.05% F.S. / 10ºC

Temp. effect on zero

0.05% F.S. / 10ºC

Input impedance

350±10Ω

Output impedance

350±5Ω

Insulation

≥5000MΩ/ 100VDC

Recommended excitation

5V

Maximum excitation

10V

Compensated temp. range

- 10~60ºC

Operation temp. range

- 20~80ºC

Safe overload

120% F.S.

Ultimate overload

150% F.S.

Cable size

1500 mm

Protection class

IP66

Cable color code

Input: Red(+) Black(-);

Output: Green(+) White(-);





























































Size and capacity:



Miniature Compression Load Cell With Stainless Steel Measure 5kg To 100kg





Schematic Wiring Diagram :



Miniature Compression Load Cell With Stainless Steel Measure 5kg To 100kg
