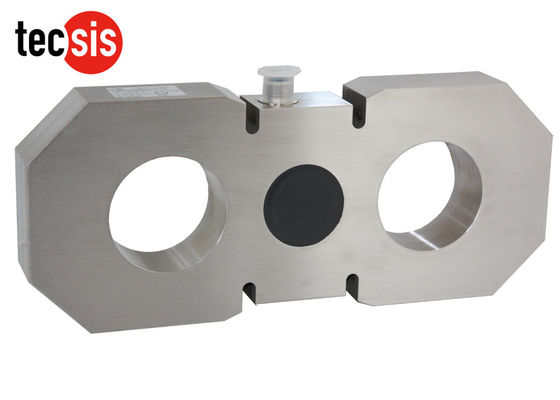

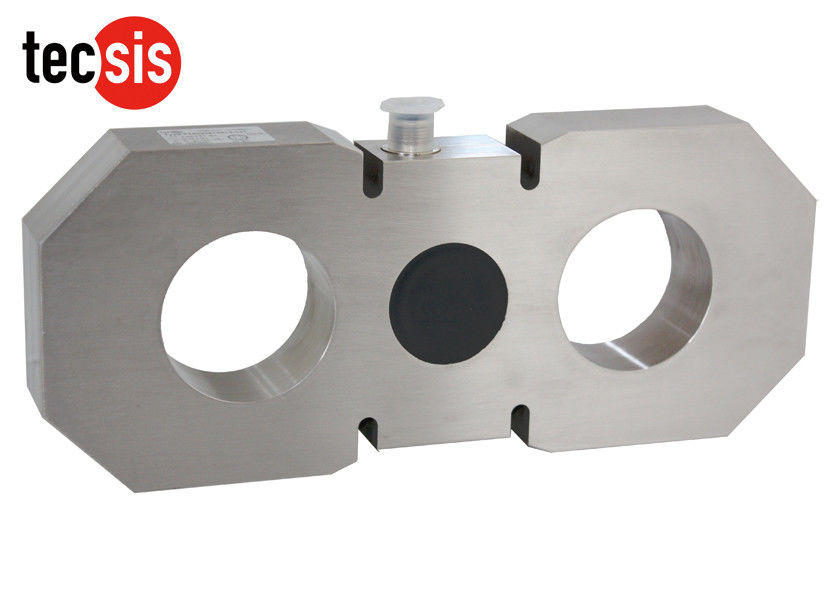

Tension Link Stainless Steel Load Cell
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | F7802 Tension Link Load Cell | Structure: | Compact |
|---|---|---|---|
| Material: | Stainless Steel | Customized: | Acceptable |
| Capacity: | 14t | OEM/ODM: | Acceptable |
| Theory: | Resistance Sensor |
Tension Link Stainless Steel Load Cell
Features :
- Model:F7802
- Tenlink link load cell
- High comprehensive precision, high stability
- Capacity:14t
- Made of stainless steel
- Used for crane industry
Description:
F7802 Force transducer is available in the capacities 14t. The size is 238mm*100mm.
The protection class is IP67, this makes it easy to used in kinds of harsh envirenments.
It has a high accuracy and easy to install. Affordable replacement of original tension links.
This mainly used in crane industry, it is convenient to measure the tension force.
The output signal can be 4~20mA and 0~10V.
Applications:
This mainly used in crane industry, it is convenient to measure the tension force.
Technical parameters:
|
Specifications |
Technique |
|
Rated output |
4~20mA(three wires) 0~10V |
|
Zero balance |
±1% F.S. |
|
Non-linearity |
0.5% F.S. |
|
Hysteresis |
0.2% F.S. |
|
Repeatability |
0.1% F.S. |
|
Creep (30min) |
0.05% F.S. |
|
Temp. effect on output |
0.05% F.S. / 10ºC |
|
Temp. effect on zero |
0.05% F.S. / 10ºC |
|
Input impedance |
405±10Ω |
|
Output impedance |
350±5Ω |
|
Insulation |
≥5000MΩ / 50VDC |
|
Recommended excitation |
24VDC |
|
Maximum excitation |
12~36VDC |
|
Compensated temp. range |
- 10~60ºC |
|
Operation temp. range |
- 20~80ºC |
|
Safe overload |
120% F.S. |
|
Ultimate overload |
150% F.S. |
|
Cable size |
Ø3*1500 mm |
|
Protection class |
IP67 |
|
Cable color code |
M12*1-4P
|
Size and capacity:
Schematic Wiring Diagram :
