Platform Truck Scale Load Cells
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | F2822 Tension Compression Load Cell | Configuration: | Pancake Type |
|---|---|---|---|
| Material: | Alloy Steel | Customized: | Acceptable |
| Capacity: | 0.5t~50t | OEM/ODM: | Acceptable |
| Theory: | Resistance Sensor | Protection Class: | IP67 |
Custom Platform Truck Scale Load Cells
Features :
- Model:F2822
- Made of alloy steel
- Capacity:0.5t~50t
- Configuration: Pancake type
- Tension and compression load cell
- High comprehensive precision, high stability
Description:

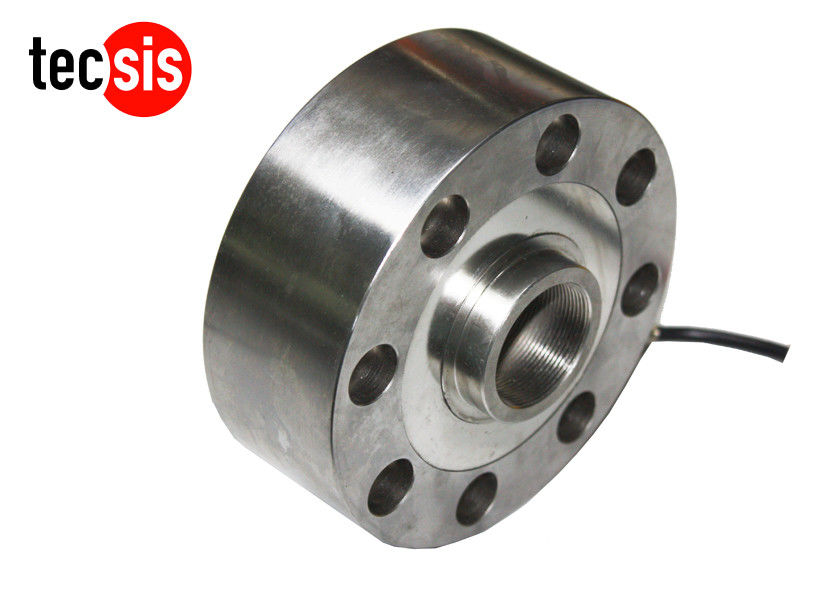

F2822 Pancake Load Cell (Tension Base) is specially designed for high capacity applications in both tension and compression. The flexure includes eight bolt-down holes along its outer diameter for ease of mounting.
The cell is available in alloy steel and comes in various optional versions such as metric threads, and amplified version readily available.
The standard F2822 Pancake Load Cell offers easy customization and modification as per need and most models are in our inventory making them available for quick delivery. The Pancake Load Cell uses metal foil strain gauge technology and is manufactured in Shenzhen China.
The protection class is IP67, waterproof, it is suitable for harsh environment.
Mainly used for platform scales, truck scales, floor scales and industrial weighing systems.
Applications:
Mainly used for platform scales, truck scales, floor scales and industrial weighing systems.
Technical parameters:
|
Specifications |
Technique |
|
Rated output |
2.0±1%mV/V |
|
Zero balance |
±1% F.S. |
|
Non-linearity |
0.05% F.S. |
|
Hysteresis |
0.03% F.S. |
|
Repeatability |
0.05% F.S. |
|
Creep (30min) |
0.05% F.S. |
|
Temp. effect on output |
0.03% F.S. / 10ºC |
|
Temp. effect on zero |
0.03% F.S. / 10ºC |
|
Input impedance |
7500±10Ω |
|
Output impedance |
700±5Ω |
|
Insulation |
≥5000MΩ / 50VDC |
|
Recommended excitation |
10V |
|
Maximum excitation |
15V |
|
Compensated temp. range |
- 10~60ºC |
|
Operation temp. range |
- 20~80ºC |
|
Safe overload |
150% F.S. |
|
Ultimate overload |
200% F.S. |
|
Cable size |
Ø5×3000 mm |
|
Protection class |
IP67 |
|
Cable color code |
Input: Red(+) Black(-); Output: Green(+) White(-); |
