Tension Alloy Steel Load Cell
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | F9204 | Structure: | Compact |
|---|---|---|---|
| Material: | Alloy Steel | Customized: | Acceptable |
| Capacity: | 1~20t | OEM/ODM: | Acceptable |
| Theory: | Resistance Sensor |

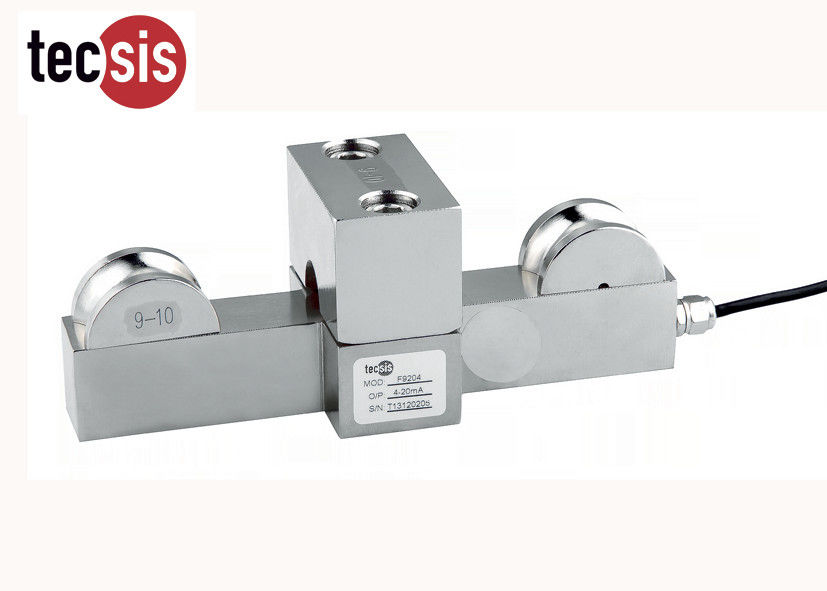

Rope Tension Sensor Alloy Steel Load Cell
Features :
- Model:F9204
- Rope tension load cell
- High comprehensive precision, high stability
- Capacity:1t~20t
- Made of alloy steel
- Used for rope tension measurement
Description:
F9204 Force transducer is available in the capacities 1t~20t. It can measure the cable tension 1t to 40t.
The protection class is IP66, this makes it easy to used in kinds of harsh envirenments.
It has a high accuracy and easy to install.
This mainly used in the measurement of rope tension force.
The output signal can be 4~20mA and 0~10V.
Applications:
This mainly used in the measurement of rope tension force.
Technical parameters:
|
Specifications |
Technique |
|
Output signal |
4~20mA 0~10V(Option) |
| Power | 12~36VDC |
| Rated output | 1.0 ± 10% mV / V |
|
Zero balance |
±2% F.S. |
|
Non-linearity |
≤0.5% F.S. |
|
Hysteresis |
0.5% F.S. |
|
Repeatability |
0.5% F.S. |
|
Creep (30min) |
0.05% F.S. |
|
Temp. effect on output |
0.025% F.S. / 10ºC |
|
Temp. effect on zero |
0.025% F.S. / 10ºC |
|
Input impedance |
780±10Ω |
|
Output impedance |
700±5Ω |
|
Insulation |
≥5000MΩ / 50VDC |
|
Recommended excitation |
10V |
|
Maximum excitation |
15V |
|
Compensated temp. range |
- 10~60ºC |
|
Operation temp. range |
- 20~80ºC |
|
Safe overload |
150% F.S. |
|
Ultimate overload |
200% F.S. |
|
Cable size |
Ø4*3000 mm |
|
Protection class |
IP66 |
|
Cable color code |
Input: Red(+) Black(-); |
